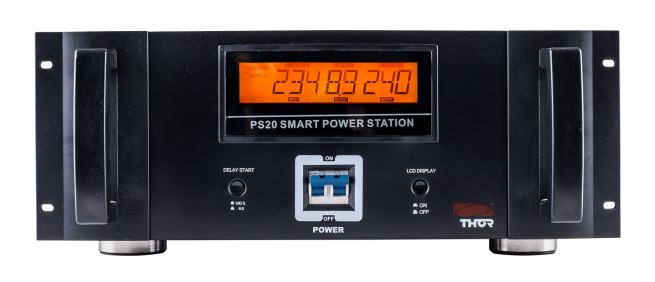

PS20 – 20A Pure Sine Wave Power Station with Elite Filtration
- MAXIMUM PROTECTION
- MAXIMUM ENERGY ABSORPTION
- FASTEST REACTION SPEED
- Pure Sine Wave Output
- Under & Over Voltage Stabilzasion
- Terminates via user selection/install by electrician
- Circuit Breaker On/Off switch
- 6 Year Replacement Warranty
TECHNICAL SMARTS
- Product Dimensions: 436mm x 195mm x 380mm
- Supply voltage 240/V AC 50Hz
- Maximum current rating 20amps/4800 W (VA)
- Wave Form Pure Sine Wave
- Operating Voltage 180V - 260V
- Incoming Voltage out of designed range (i.e. 180v - 260v): if input was 270v then output would be approx 250v to 255v
- Incoming Voltage out of designed range (i.e. 180v - 260v): if input voltage was 140v then output would be approx 230v - 235v
- Includes DRM95 20A Isolated Mains Filter and Spike/Surge Protection module
- Model PS20
INSIDE THE BRAIN
- SmartBrain has a premium filter technology called Dynamic Active Tracking (inc DRM95 20A). This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.
