Amplifier or receiver
Add modern streaming and app control to a classic or contemporary stereo.

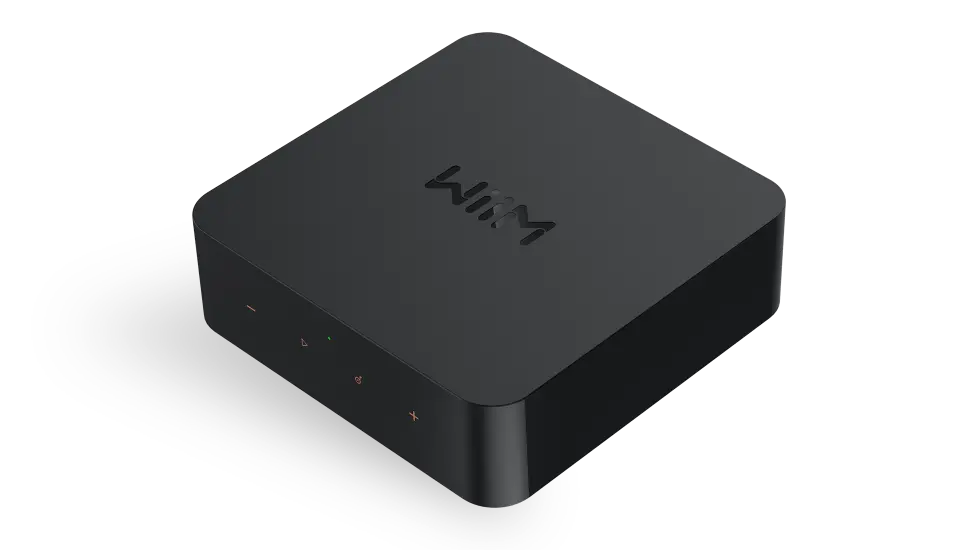

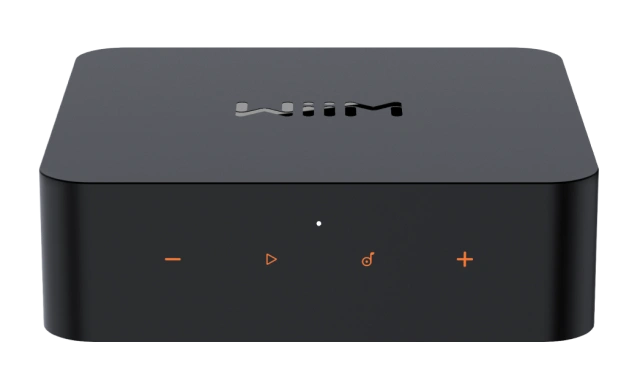

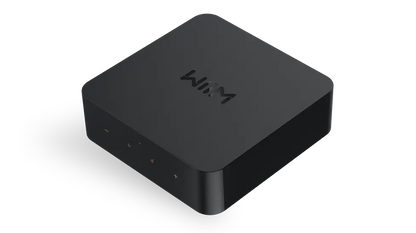

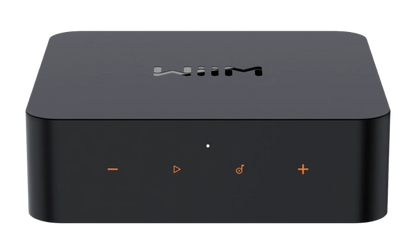

WiiM PRO PLUS MUSIC STREAMER
WiiM PRO PLUS MUSIC STREAMER
Regular price
$399.00
Regular price
Sale price
$399.00
Unit price
per
Taxes included.
Couldn't load pickup availability
WiiM Pro Plus
Music Streamer Redefined.
Keep Your Stereo. Upgrade Everything Else.
Bring premium streaming, AirPlay 2, Google Cast, Roon Ready playback, and advanced sound tuning to the amplifier or powered speakers you already love—with an AKM DAC built in, so you can enjoy exceptional analog output without adding another box.
Up to 24-bit/192 kHz from supported sources
121 dB SNR, -113 dB THD+N analog line-out
RoomFit™ + 10-band Graphic EQ and Parametric EQ
Voice Remote and essential cables included
The Stereo You Love, Ready for Streaming.
WiiM Pro Plus fits into the system you already built. Connect it directly to an integrated amplifier, receiver, or powered speakers through RCA—or send bit-perfect digital audio to your favorite DAC through optical or coaxial output. Your speakers stay. Your amplifier stays. The way you listen gets dramatically easier.
Powered speakers
Create a compact, high-fidelity system without a separate preamp or DAC.
External DAC
Use optical or coaxial output up to 24-bit/192 kHz. For bit-perfect output, enable Fixed Volume and disable EQ and mono audio.
Premium Analog Sound. No Extra DAC Required.
Connect WiiM Pro Plus straight to your amplifier or powered speakers and let its premium analog stage do the work. The AKM AK4493SEQ DAC, ultra-low-noise clock, optimized power design, and carefully engineered signal path deliver 121 dB SNR and -113 dB THD+N through Line Out—clean, detailed performance from one compact component.
Why Plus callout
Choose Pro Plus when you plan to use RCA Line Out and want WiiM's premium analog performance in this compact form factor. If you will always use an external DAC, WiiM Pro may already cover your core streaming needs.
Your Music. Your App. Your Choice.
Stream with AirPlay 2, Google Cast, Alexa Cast, Spotify Connect, TIDAL Connect, DLNA, and Roon Ready. Play directly from your favorite app, or manage everything from WiiM Home.
Stream More Than Streaming Services.
Connect a CD player, TV, computer, or preamplified turntable through RCA Line In or Optical In. Listen on the connected system, apply per-source EQ, or share that source with other WiiM devices around your home.
Turntable
Use a turntable with a built-in phono preamp or add an external phono preamp before Line In.
TV or computer
Use Optical In and set the source to stereo PCM. Dolby Digital and DTS are not supported on this input.
CD player or other analog source
Connect through Line In, enable auto-sensing, and let WiiM switch when the source starts.
Multi-room boundary
Physical inputs can be shared through a WiiM multi-room group. Alexa and Google groups carry network music streams only, and Pro Plus does not transmit physical inputs into an AirPlay group.
Smart Bass. Perfectly Tuned.
Pair WiiM Pro Plus wirelessly with its ultimate partner, WiiM Sub Pro, for effortless integration and smart tuning—delivering a unified, breathtaking soundstage.
Tune the System for Your Room—and Your Taste.
Every room changes what you hear. RoomFit™ helps adapt playback to the space, while 10-band Parametric EQ and Graphic EQ give you precise control. Save per-source settings so streaming, TV, vinyl, and Bluetooth can each sound the way you want without constant readjustment.
A Flexible Bridge for the Gear You Own.
WiiM Pro Plus includes analog and digital inputs as well as analog and digital outputs, so it can connect both the sources you already use and the system you listen through.
From Box to Music in Four Clear Steps
Step 1
Connect WiiM Pro Plus to your stereo system and power source. Wait 30 seconds for it to boot up.
Step 2
Open the WiiM Home app and follow the prompts to set up WiiM Pro Plus (e.g., Wi-Fi connection, remote pairing, firmware update, and audio settings).
Step 3
Run RoomFit™ in the app to automatically optimize the sound for your room.
Step 4
Stream from your favorite music service or a physical audio source, and enjoy Hi-Res audio.
If the app cannot find Pro Plus, confirm that your phone and WiiM are on the same network. Then update the app and restart WiiM, your router, and your phone before re-running setup.
Your System, Ready When You Are.
Use the included Voice Remote for playback, volume, inputs, four presets, and push-to-talk voice commands. Front touch controls handle the essentials. A 12V trigger can wake a compatible amplifier or DAC with Pro Plus, while input auto-sensing makes connected sources feel immediate.
Start with One System. Add Rooms When You're Ready.
Group WiiM devices for synchronized playback, create a stereo pair, or share network, Bluetooth, Line In, and Optical In sources across an all-WiiM group. Expand the system at your pace—add a compatible WiiM Sub model without replacing the rest of your setup.
- Multi-Room Audio
- Easy Whole-Home Listening
- Perfectly In Sync
SPECIFICATIONS:
Dimensions and Weight
Dimensions：140 × 140 × 42 mm (5.5 × 5.5 × 1.6 in)
Weight：400g (14.1 oz)
Audio Input
Line In:
• 2 Vrms• Analog signal, converted to digital via ADC (192 kHz/24-bit)
SPDIF In:
• Up to 192kHz/24-bit• Supports Stereo PCM (Dolby Digital and DTS are not supported)
Audio Output
1 x Line Out
1 x SPDIF Out (up to 192 kHz/24-bit)
1 x Coax Out (up to 192 kHz/24-bit)
1 x SPDIF Out (up to 192 kHz/24-bit)
1 x Coax Out (up to 192 kHz/24-bit)
12V Trigger Out
2.5 mm jack
Frequency Response
20 Hz-45 kHz
20 Hz-20 kHz (±0.1dB)
20 Hz-20 kHz (±0.1dB)
Internal DAC IC
AKM AK4493SEQ
Analog Out SNR
121 dB
THD+N (Analog Out)
-113 dB (0.00023%)
Network
802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi
10/100M Ethernet
10/100M Ethernet
Bluetooth
BT 5.0
Digital Audio Output
Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output.
Audio Codec
MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
Supported Streaming Protocol
AirPlay 2, Google Cast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon Ready
Streaming Services in App
Spotify, Amazon Music, Deezer,TuneIn, TIDAL, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Sound machine, etc.
Smart Audio & EQ
RoomFit™ auto-correction
24 preset EQ settings, 10-band Graphic EQ, 10-band Parametric EQ
24 preset EQ settings, 10-band Graphic EQ, 10-band Parametric EQ
Power Input
USB Type-C, requires 5 V, 1.5 A or higher
Bundled adapter: 5 V, 2 A
Bundled adapter: 5 V, 2 A
LED
Three color status LED — Red, Green and White
Button
Capacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset
Group with Nest speakers and Display
Yes
Group with Echo speakers and Display
Yes
Alexa Multiroom with UHD
Yes
Group with HomePods
Yes
Works with Alexa
Yes
Works with Google
Yes
Works with Siri
Yes
Group with WiiM or Linkplay devices
Yes
Package Contents
WiiM Pro Plus x 1
WiiM Voice Remote x 1
Quick start guide x 1
Trigger out converter x 1
USB power adapter x 1
RCA audio cable x 1
USB Type-C cable x 1
Optical audio cable x 1
Note: USB power adapter will vary by region.
WiiM Voice Remote x 1
Quick start guide x 1
Trigger out converter x 1
USB power adapter x 1
RCA audio cable x 1
USB Type-C cable x 1
Optical audio cable x 1
Note: USB power adapter will vary by region.
