A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers a powerful yet somehow elegant and emotional Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.
- Fully balanced circuit design from input to speaker out

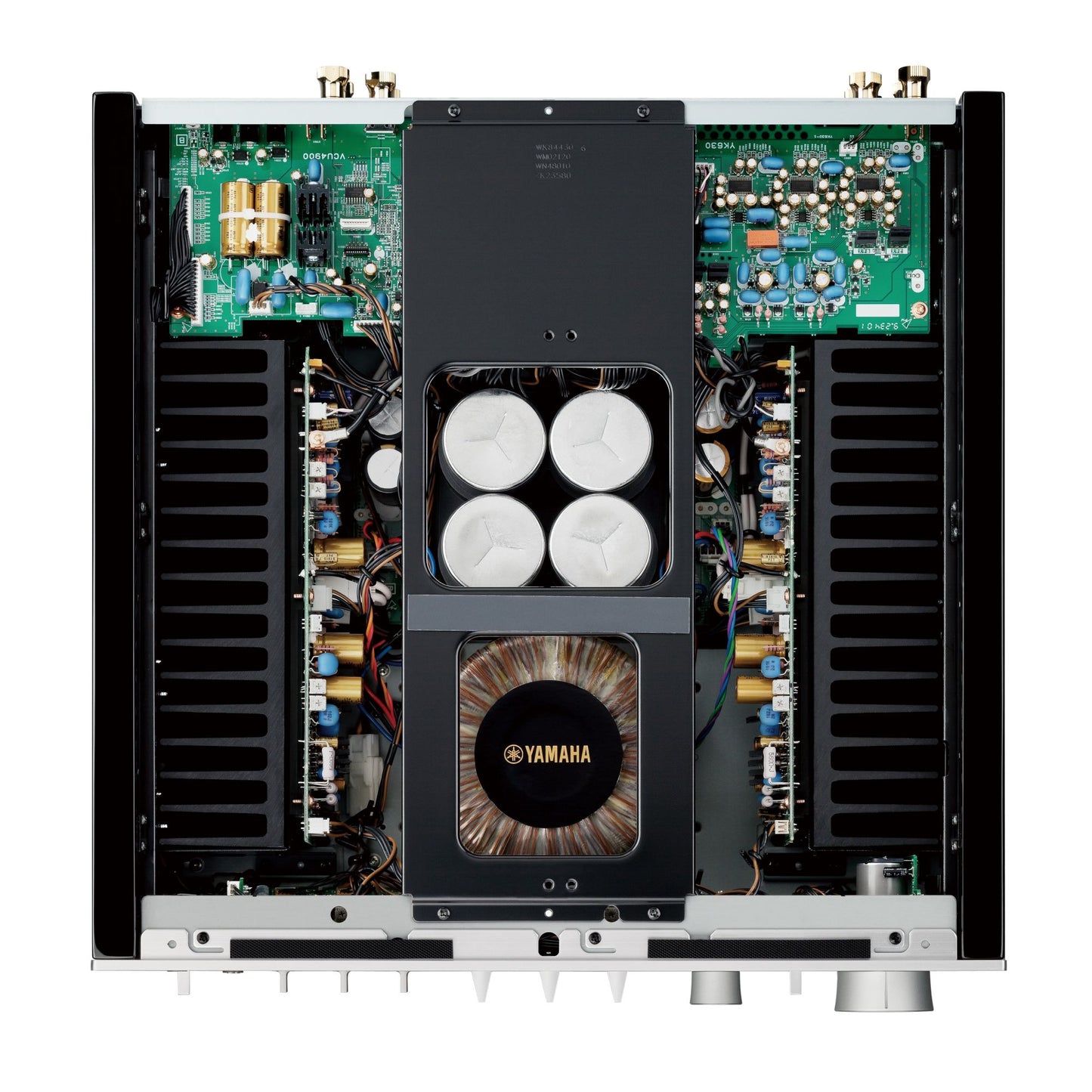

- Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
- Mechanical ground concept maximises rigidity for expressive and rhythmic bass
Music spawns from something emotional. A unique, personal story an artist wishes to share. Understanding how music is created, and indeed helping artists to create, embeds in Yamaha’s DNA a fundamental understanding of music, particularly the emotion upon which music creation is inspired. In the development of each of our extensive range of Hi-Fi products, conveying this emotion to the listener is one of the most important considerations.
Authentic, pure Hi-Fi is less about listening to brilliant sounding equipment and more about that equipment disappearing and the artist performing live in the room. The openness of the music, that feeling of being within reach of the artist, brings the music to the fore, and makes listening to music an active rather than passive experience.
|Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)||160 W + 160 W|
|High Dynamic Power/Channel (8/6/4/2 ohms)||105/135/190/220 W|
|Rated Output Power||[20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)|
|Damping Factor||≧ 250 (1 kHz, 8 ohms)|
|Frequency Response||+0 / -3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)|
|RIAA Equalization Deviation||＋/-0.5 dB (PHONO (MM/MC))|
|Total Harmonic Distortion (20Hz to 20kHz)||[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035 % (50 W/8 ohms）|
|Signal-to-Noise Ratio||PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB|
|Input Sensitivity||[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms|
|Dimensions (W x H x D)||435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4"|
|Weight||22.7 kg; 50.0 lbs|
