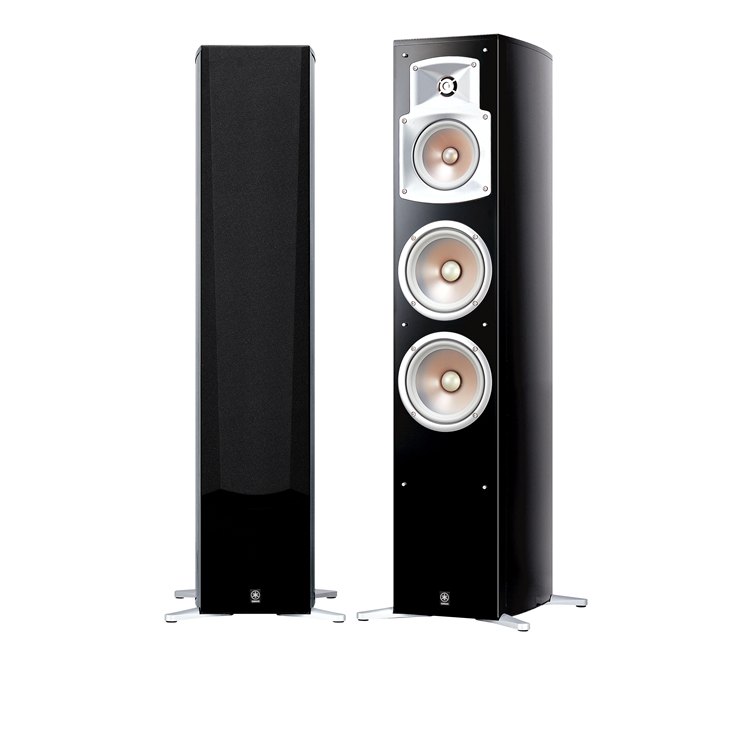

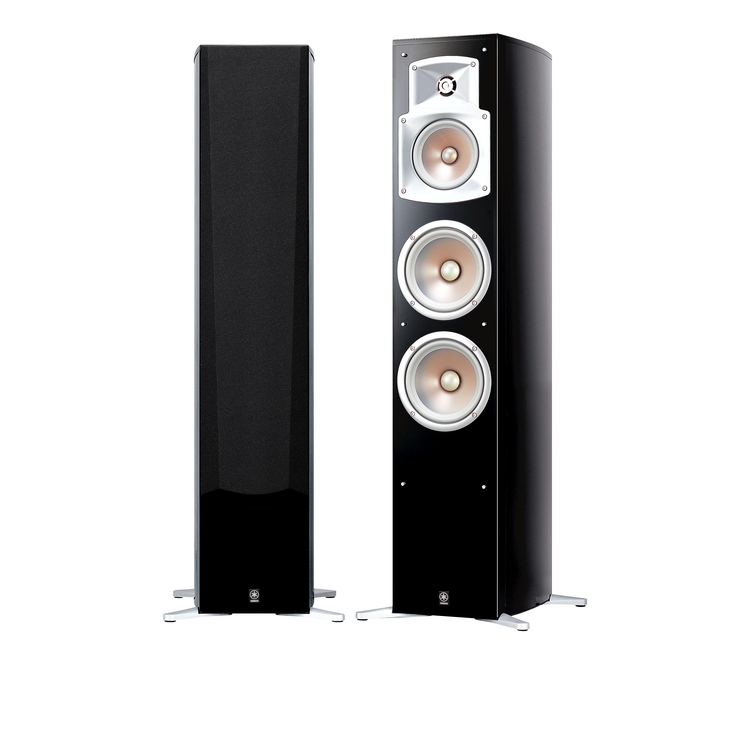

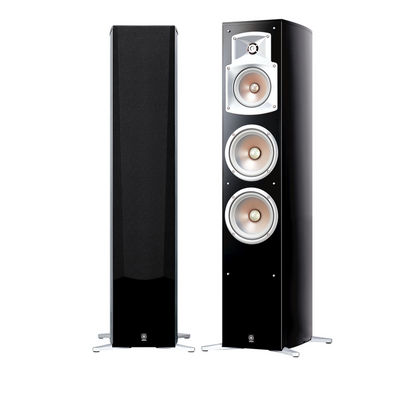

3-Way Bass-Reflex Tower Speaker System. The EF (Elliptical Form) Series feature Waveguide horns, PMD (Polymer-injected Mica Diaphragm) woofers and highest quality internal Monster Cable wiring for total enjoyment of digital movie sound and music sources, plus elegant Yamaha traditional piano finish cabinets.
- High sensitivity and wide dynamic range for contemporary digital sources
- Waveguide horn allows the sound field to be shaped and controlled for optimal spatial expression in home theater environments
- PMD (Polymer-injected Mica Diaphragm) cone woofer combines highperformance materials and design for extreme accuracy
- Highest quality internal Monster Cable wiring
- High frequency response dome tweeter delivers clear, natural highs
- Bi-wiring connectivity
- Beautiful Yamaha piano finish with elegant elliptical form
Type | 3-Way, 4-Speaker Bass-Reflex Floor-Standing Speaker System | |
---|---|---|
Woofers | Dual 16cm PMD cone | |
MidRange Driver | 13cm cone with Waveguide horn | |
Tweeter | 2.5cm aluminium dome with Waveguide horn | |
Frequency Response | 35 Hz-35 kHz | |
Nominal Input Power | 100 W | |
Maximum Input Power | 250 W | |
Sensitivity | 88 dB/2.83 V/1 m | |
Crossover Frequencies | 1 kHz/4 kHz | |
Impedance | 6 ohms | |
Dimensions (W x H x D) | 222 x 980 x 345 mm | |
Weight | 20 kg/unit |
