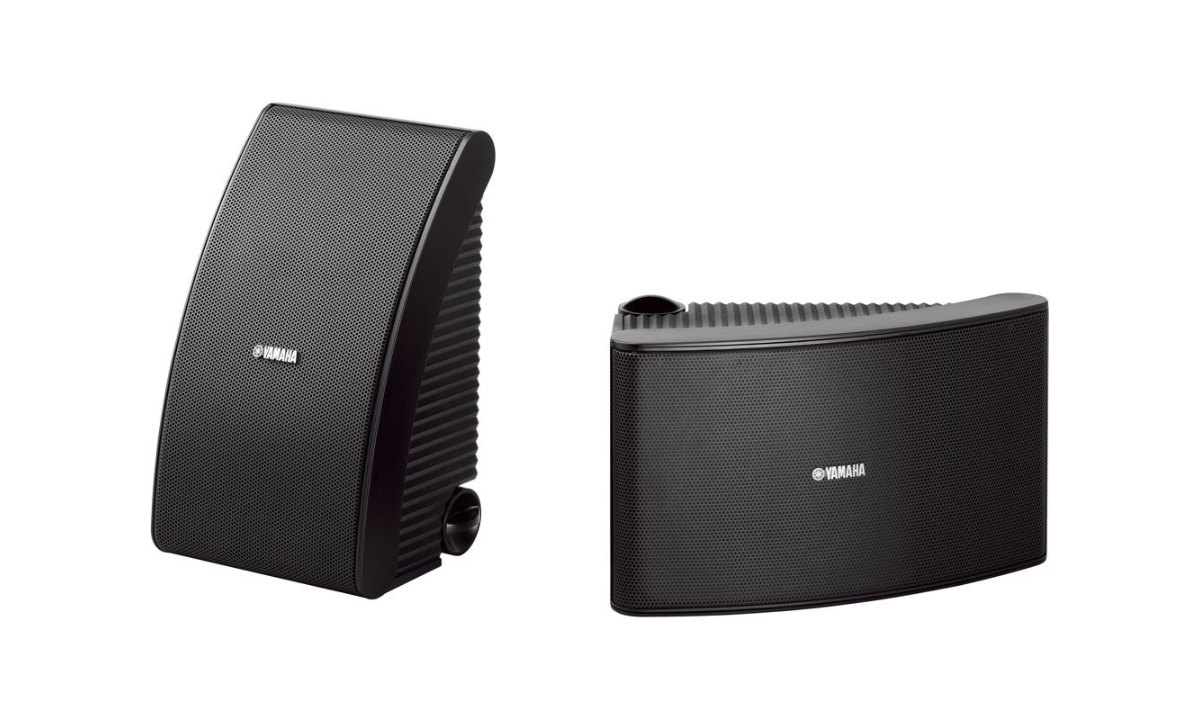

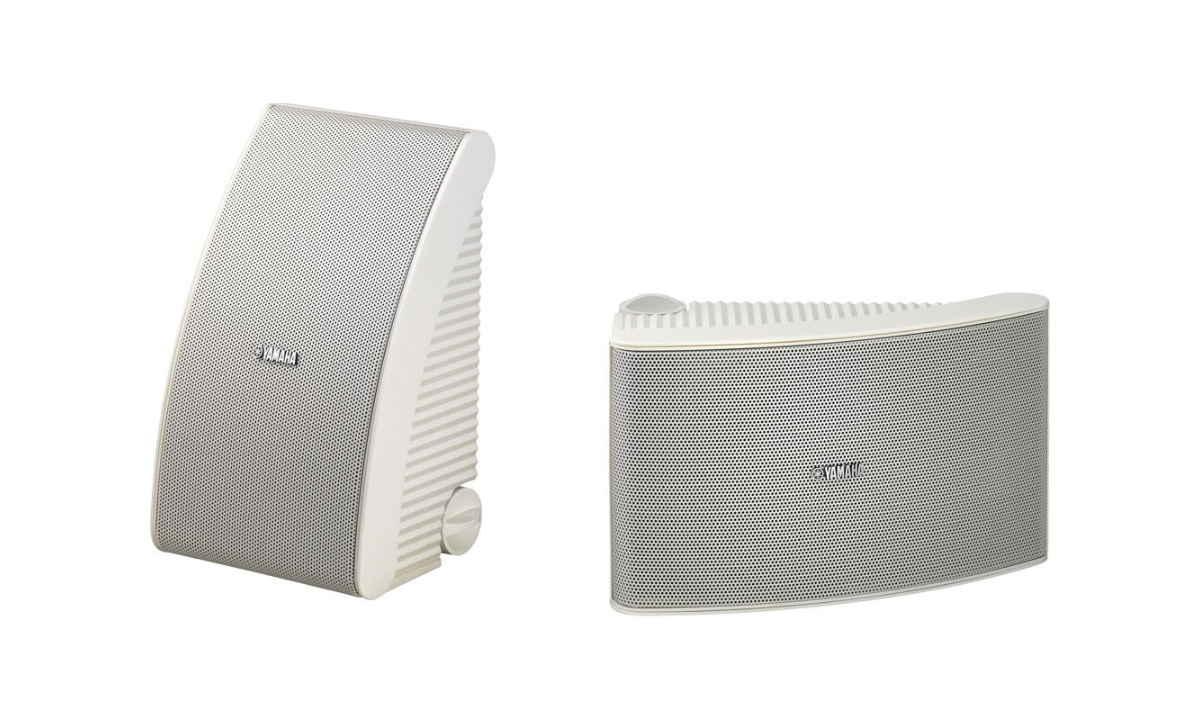

Outdoor speaker systems that combine quality and durability, and provide a wide variety of installation options.
- Yamaha's advanced speaker technology makes it possible to combine high sound quality with long-term durability
- Unique angled cabinet design blends in with external and interior décors
- Two-way acoustic suspension design
- High-grade weatherproof cabinets with special processing for drip, water and UV resistance
- Precise sound imaging supported by time-aligned woofer and tweeter placement
- Flexible installation options with supplied mounting brackets
- Weather resistant 5-way binding post speaker terminals
- Powder-coated aluminum speaker grilles
- Supplied rubber feet for desktop/bookshelf placement
- Wide range of applications for home theaters, small commercial spaces and public buildings
FEATURES
Durability
• High-grade weatherproof cabinets with special processing for drip, water and UV resistance New waterproof woofer and soft dome tweeter • Weather resistant 5-way binding post speaker terminals • Powder-coated aluminum speaker grilles
Premium Sound Quality and Design
• Yamaha's advanced speaker technology makes it possible to combine high sound quality with long-term durability • Unique angled cabinet design blends in with external and interior décors • Two-way acoustic suspension design— New waterproof woofer for accurate mid/low frequency response— Fluid-cooled, coated soft dome tweeter for clear high frequency sound— Waveguide and front baffle for wide sound dispersion • Precise sound imaging supported by time-aligned woofer and tweeter placement
Versatility
• Supplied mounting brackets allow the speakers to be mounted on the wall or on the ceiling, with either end facing up, or even horizontally, with a 90° adjustment range Install the NSAW992, NSAW592, NSAW392 all-weather speakes on the wall or the ceiling • Supplied rubber feet for desktop/bookshelf placement • Wide range of applications for home theaters, small commercial spaces and public buildings
SPECIFICATIONS
| Type | 2-way acoustic suspension | |
|---|---|---|
| Woofers | 13cm (5-1/4") waterproof cone | |
| Tweeter | 2.5cm (1") fluid-cooled, coated soft dome | |
| Frequency Response | 60 Hz –25 kHz | |
| Nominal Input Power | 40 W | |
| Maximum Input Power | 120 W | |
| Sensitivity | 86 dB/2.83 V/1 m | |
| Crossover Frequencies | 6 kHz | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 170 x 273 x 136 mm(6-3/4” x 10-3/4” x 5-3/8”) | |
| Weight | 1.8 kg; 4 lbs./unit | |
