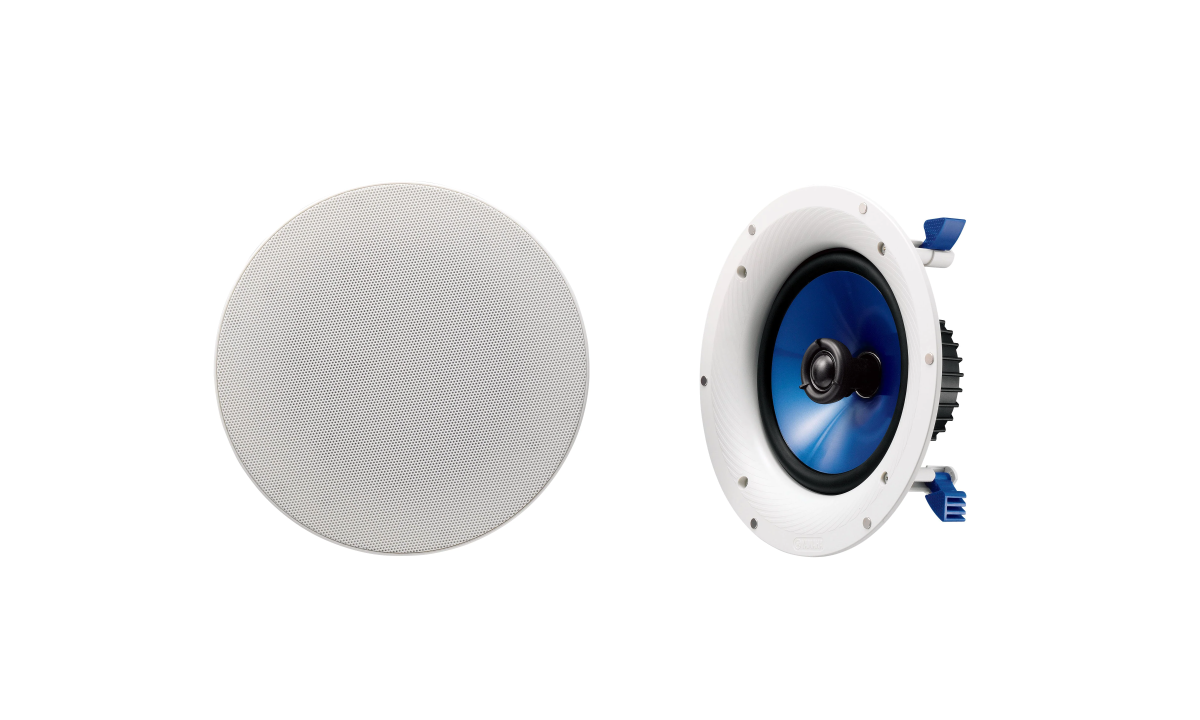

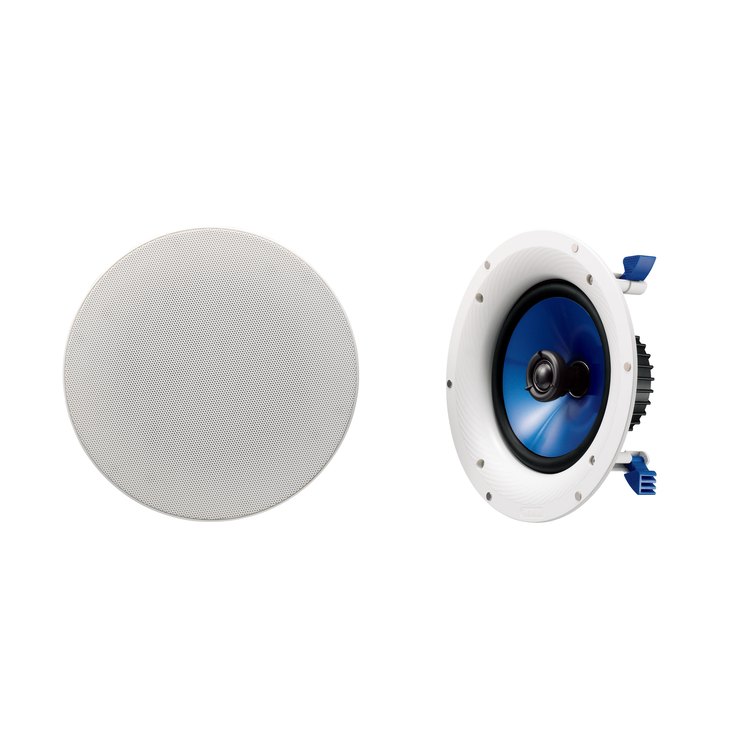

Yamaha’s new easy-to-install and versatile in-ceiling speakers deliver high performance sound in a low profile and unobtrusive design. The speakers are designed to fit all situations. The NS-IC800 is fantastic for 2-channel sound reproduction or home theatre use in a living room, dining room, family room or bedroom.
FEATURES
High-quality sound
Yamaha in-ceiling speakers were designed for easy installation. Simply the location for the speakers, use the template (provided in the box) to cut the required hole in the ceiling and clamp the new speakers into place by tightening the screws. Connect the speakers to a Yamaha amplifier for premium sound.
Quick and Easy Installation
Yamaha in-ceiling speakers were designed for easy installation. Simply the location for the speakers, use the template (provided in the box) to cut the required hole in the ceiling and clamp the new speakers into place by tightening the screws. Connect the speakers to a Yamaha amplifier for premium sound.
Paintable Magnetic Grills
In-ceiling speakers should be heard and not seen. With this in mind Yamaha has designed their entire range of in-ceiling speakers with removable magnetic grills. This makes removing the grills easy for painting.
SPECIFICATIONS
| Type | 2-way coaxial | |
|---|---|---|
| Woofer | 8” (20 cm) PP (polypropylene) mica cone | |
| Tweeter | 1” (2.5 cm) fluid-cooled soft dome, swivel | |
| Frequency Response | 50 Hz – 28 kHz | |
| Maximum Input Power | 140 W | |
| Sensitivity | 90 dB | |
| Crossover Frequencies | 12dB/oct. (3.5 kHz) | |
| Impedance | 8 ohms | |
| Dimensions (W x H x D) | Φ11-1/8” x 4-3/4”; Φ283 x 120 mm | |
| Mounting Depth | 4-1/4” (109 mm) | |
| Weight | 4.2 lbs. (1.9 kg) | |
| I/O connectors | Push Terminal ( Applicable Cable *Max, Twisted wire : 8mm²/ AWG 8) | |
