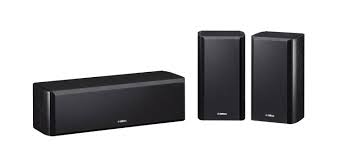

Two surround speakers and one centre speaker deliver the high sound quality you expect from Yamaha speakers. All have 2-way acoustic suspension designs with one (surround) or two (centre) 8cm cones and a 1.4cm balanced dome.
- Side panels with elegant rounded edges
- Perfectly matched home theatre speaker system
- Centre speaker has two 8cm cone woofers and a 1.4cm balanced dome tweeter for clear and natural movie dialogue and music vocals
- Surround speakers have an 8cm cone woofer and a 1.4cm balanced dome tweeter for cleanly reproduced full-range sound
- Large-size, gold-plated screw terminals
- Wall Mountable
FEATURES
Side Panels with Elegant Rounded Edges
The side panels provide a suave and sophisticated appearance, which is enhanced by rounded front and rear edges.
Perfectly Matched Home Theatre Speaker System
The NS-P160 and NS-F160 speakers will deliver superb home theatre sound, as they were specifically designed to match each other acoustically.
2-Way, 3-Speaker Centre Speaker for sharp and clear dialogue and vocals
Yamaha recognizes the importance of the centre speaker for both movies and music, and ensures accurate reproduction by using an acoustic suspension design with perfectly matched dual 8cm cone woofers and a 1.4cm balanced dome tweeter.
Large-size, Gold-plated Screw Terminals
The extra-large, screw-type terminals are gold-plated to ensure maximum signal transmission efficiency. They are capable of handling HD audio signals with no loss of sound quality.
Wall Mountable
The centre and surround speakers have keyholes on the back so they can be quickly and securely wall mounted.
SPECIFICATIONS
| NS-P160 | ||
|---|---|---|
| Type | 2-way acoustic suspension | |
| Center Speaker | Woofers | Dual 8cm (3-1/4”) cone |
| Tweeter | 1.4cm (1/2”) balanced dome | |
| Frequency Response | 60 Hz–38 kHz | |
| Nominal Input Power | 30 W | |
| Maximum Input Power | 80 W | |
| Sensitivity | 86 dB/2.83 V/1 m | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 465 x 135 x 172 mm; 18-1/4” x 5-3/8” x 6-3/4” | |
| Weight | 2.9 kg; 6.4 lbs./unit | |
| Surround Speaker | Woofers | 8cm (3-1/4”) cone |
| Tweeter | 1.4cm (1/2”) balanced dome | |
| Frequency Response | 60 Hz–38 kHz | |
| Nominal Input Power | 20 W | |
| Maximum Input Power | 60 W | |
| Sensitivity | 82 dB/2.83 V/1 m | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 150 x 265 x 152 mm; 5-7/8” x 10-3/8” x 6” | |
| Weight | 1.8 kg; 4 lbs./unit | |
