YAMAHA XDA-QS5400RK MusicCast MULTI-ROOM STREAMING AMPLIFIER (4 ZONE, 8 CHANNEL)

Vendor

YAMAHA

Regular price
$3,499.00
Sale price
$3,499.00
Regular price
Sold out
Unit price
per
Tax included.

Add Smart to Your Sound



Specially designed for custom integration of whole home audio systems, the “QS” (Quad Streamer) provides four zones of audio streaming and eight channels of high-performance audio amplification in an ultra-slim, 1U-high, rack-mountable enclosure. Expandable and extremely flexible, the QS works with the MusicCast multi-room audio system, allowing it to be linked with home theater AV receivers, sound bars and Hi-Fi gear in a wide variety of configurations.

  • Designed for custom integration of a MusicCast multi-room audio system connected via Ethernet LAN in a rack or cabinet
  • Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each
  • Eight channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
  • Built-in Spotify Connect, TIDAL, Deezer and Net Radio music streaming services, plus access to music libraries and linked external sources
  • Easy control via a free MusicCast app and 3rd-party control systems
  • 1U high, rack-wide enclosure; removable rack ears and faceplate included

    Whole Home Audio: Redefined

    Designed from the ground up for custom installation, the “QS” represents the ultimate integrated solution for filling every room in a home with extraordinary sound.


      Slim Yet Powerful

      The QS packs four rooms of audio streaming and eight channels of audiophile-grade amplification into a remarkably slim, 1U-high enclosure, allowing you to fully-optimise your valuable rack real estate.

      Slim Yet Powerful


      Expands Easily

      Multiple QS units can be used together to expand up to 32 zones with simultaneous playback of linked groups up to 20 zones each. In addition, the QS offers four zone preouts that enable it to be combined with the Yamaha XDA-AMP5400RK, a companion multi-room amplifier, to provide more power or more speaker coverage for large areas in a home. The preouts may also be used to connect powered subwoofers or subwoofer amps.

      Expands Easily


      A Family Like No Other

      As a member of the MusicCast family, the QS integrates seamlessly with Yamaha AV receivers, sound bars and more. Now everything – from a surround sound home theatre to a bedroom TV system to in-ceiling speakers in the kitchen – can all work beautifully together.

      A Family Like No Other

      Access all of your favourite music, including built-in streaming services and music libraries on smartphones, tablets and network-attached storage devices.

      (Streaming service availability varies by region and may change or be discontinued without notice.)

        Want to hear TV sound or vinyl records throughout the home? Link to a MusicCast receiver, sound bar or turntable to access audio from virtually any source.

          The QS supports IP control by 3rd-party control systems used in many of today’s most advanced smart homes.


            It’s also easy to set up and control with the free MusicCast app, which offers unique personalisation features including the ability to assign custom images to rooms, and to rename, rearrange and hide sources.


              Engineered to Sound Extraordinary

              No ordinary amp, the QS employs ultra-efficient ICEpower integrated circuits to deliver eight channels of pristine, musically-dynamic digital amplification at 50 watts/channel (8 ohms) with an outstanding 10 Hz to 22 kHz (+0/-3 dB) frequency response and 106 dB signal-to-noise ratio. It is 4 ohm capable at 100 watts/channel and bridgeable to 200 watts/channel (8 ohms).


                The curse of the custom integrator: ground loop hum, a common and vexing side effect of connecting a bunch of electronics together in a rack. The QS takes care of it with a brilliantly-engineered differential circuit design. Sometimes it’s what you don’t hear that sounds the most amazing.

                  Experience every detail of your favourite recordings. The QS supports high-res audio playback up to 192 kHz/24-bit, and employs the same premium ESS Sabre DACs (Digital-to-Analogue Converters) and PML capacitors used in our flagship AVENTAGE AV receivers.

                    Uniquely Yamaha

                    The audio performance of the QS is further enhanced with a suite of exclusive Yamaha technologies, including our Compressed Music Enhancer, Advanced Bass Extension Processing and volume adaptive EQ. The result – it always sounds great.

                    Uniquely Yamaha


                    Custom-Built for Custom

                    Mount it in a rack with the included ears or remove the ears for shelf installations. The included magnetic faceplate discourages tampering and provides the perfect cosmetic finish.

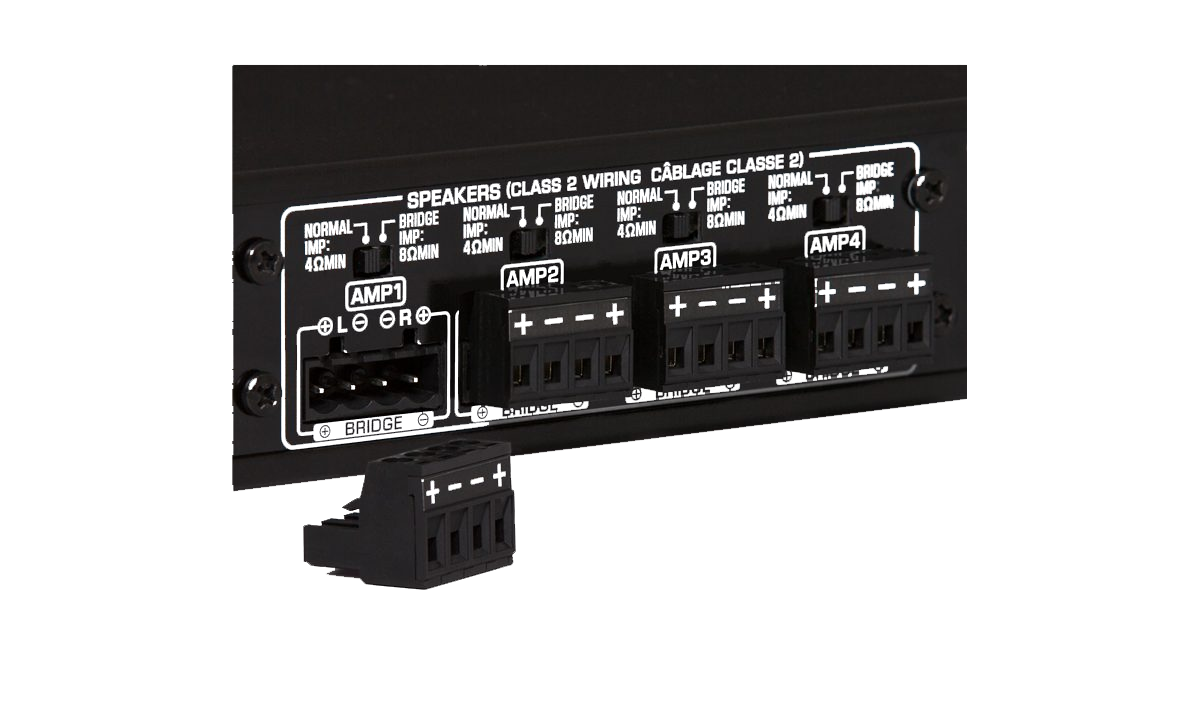

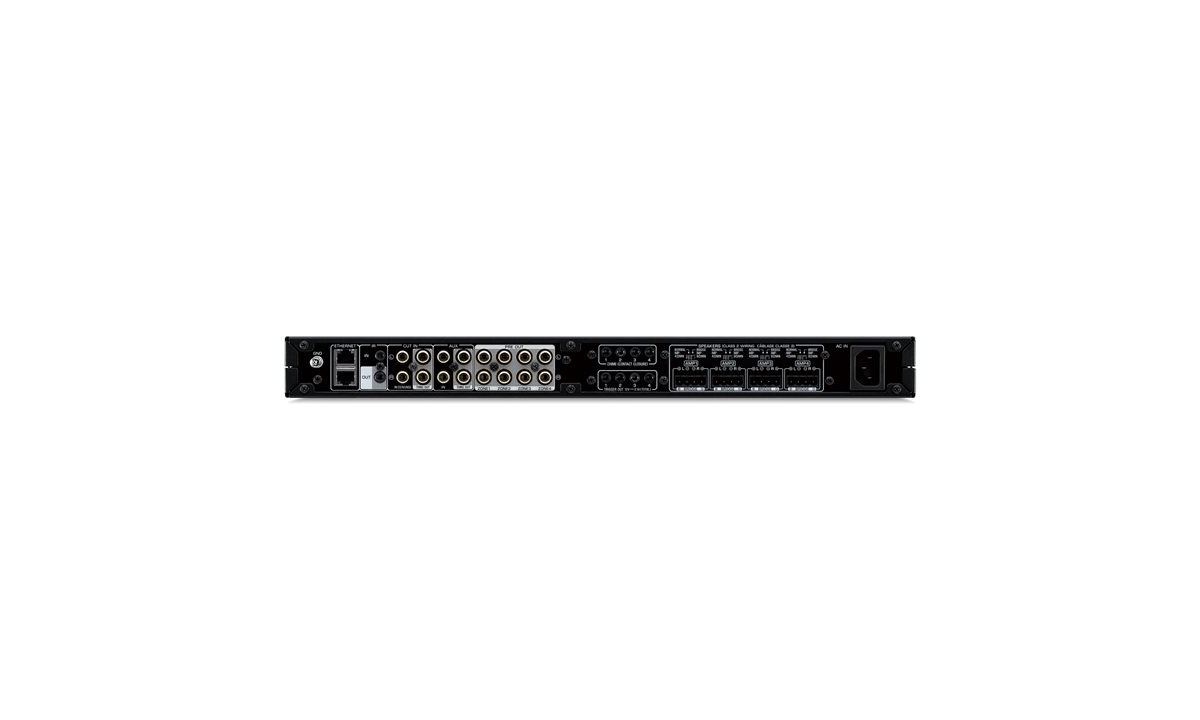

                      The QS is truly made for custom integration, with Euroblock-style speaker connectors, dual RJ-45 Ethernet ports and a detachable AC cable for smart connectivity, and IP, IR and 12 V Trigger Out jacks for versatile control.


                        Three Ways to Handle External Sources

                        In addition to supporting external sources through linking with MusicCast receivers and sound bars, the QS offers an Aux input that can be selected for playback in any zone and a Cut-In input that automatically senses an input signal and temporarily overrides the selected source. This gives you flexibility to integrate media players, CD changers or even paging systems. Thru-Outs let you set up a bus to additional QS units.

                        Three Ways to Handle External Sources


                        Unique Chime Generator

                        The Chime contact closure inputs let you generate a doorbell chime or, for example, an alert for a gate from a common switch. Output zones and chime sound selection can be configured using the Web Setup.

                        Unique Chime Generator

                        Access Basic or Advanced settings via a Web Setup menu and store commonly-used profiles for faster configuration of future projects.


                          XDA-QS5400RK
                          Network Section File Format MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit
                          Ethernet Yes (2 terminals)
                          AirPlay Yes
                          Audio Specifications Channel 8 channel (2 channel x 4)
                          Minimum Speaker load Capability 4 ohm
                          BTL Connection Yes
                          Speaker Output Terminal 4 (Euroblock)
                          Preout Terminal 4
                          Audio Input Terminal RCA: 2 (CUT IN, AUX), USB: 4
                          Audio Output Terminal RCA (2-ch through out): 2 (CUT IN, AUX)
                          Trigger In / Out 0 / 4
                          Remote In / Out 1 / 1
                          Chime 4
                          Rated Output Power (1 kHz, 0.9% THD, 2ch driven) Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
                          Rated Output Power (1 kHz, 0.9% THD, 1ch driven) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
                          Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
                          Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
                          Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
                          Maximum Effective Output Power [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W
                          Total Harmonic Distortion [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005%
                          Frequency Response [1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz
                          Signal to Noise Ratio [PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB
                          Rated Output Level / Output Impedance [PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm
                          Maximum Output Level [PRE OUT L / R, 0.9% THD] 4.0 V
                          Maximum Input Signal [PRE OUT L / R, 0.9% THD] 2.4 V
                          Gain [SP OUT 1 V Input] 25.8 dB
                          Input Sensitivity [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V
                          Web Setup Yes
                          Direct Mode Yes
                          Monaural Downmix Yes (stereo playback or monaural downmix selectable)
                          Compressed Music Enhancer Yes
                          Volume Adaptive EQ Yes
                          Volume Control Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB
                          EQ Characteristics [Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz
                          Bass Extension Yes
                          General Power Consumption 130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W
                          Standby Power Consumption Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W
                          Power Management (Auto Power Standby) 5 / 20 min, 2 / 4 / 8 / 12 hours selectable
                          Dimension (W × H × D) mm [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
                          Weight 6.3 kg; 13.9 lbs.
