General specifications
|
Speaker type |
2-way, Bi-amp powered speaker, Bass-reflex type |
2-way, Bi-amp powered speaker, Bass-reflex type |
2-way, Bi-amp powered speaker, Bass-reflex type |
Frequency range (-10dB) |
50Hz – 20kHz |
52Hz – 20kHz |
55Hz – 20kHz |
Nominal coverage |
H |
90° |
90° |
90° |
V |
60° |
60° |
60° |
Components |
LF |
Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite |
Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
Diameter:10" cone, Voice Coil:2", Magnet:Ferrite |
HF |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite |
Crossover |
2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
Output power |
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W) |
Maximum output level (1m; on axis) |
132dB SPL |
131dB SPL |
129dB SPL |

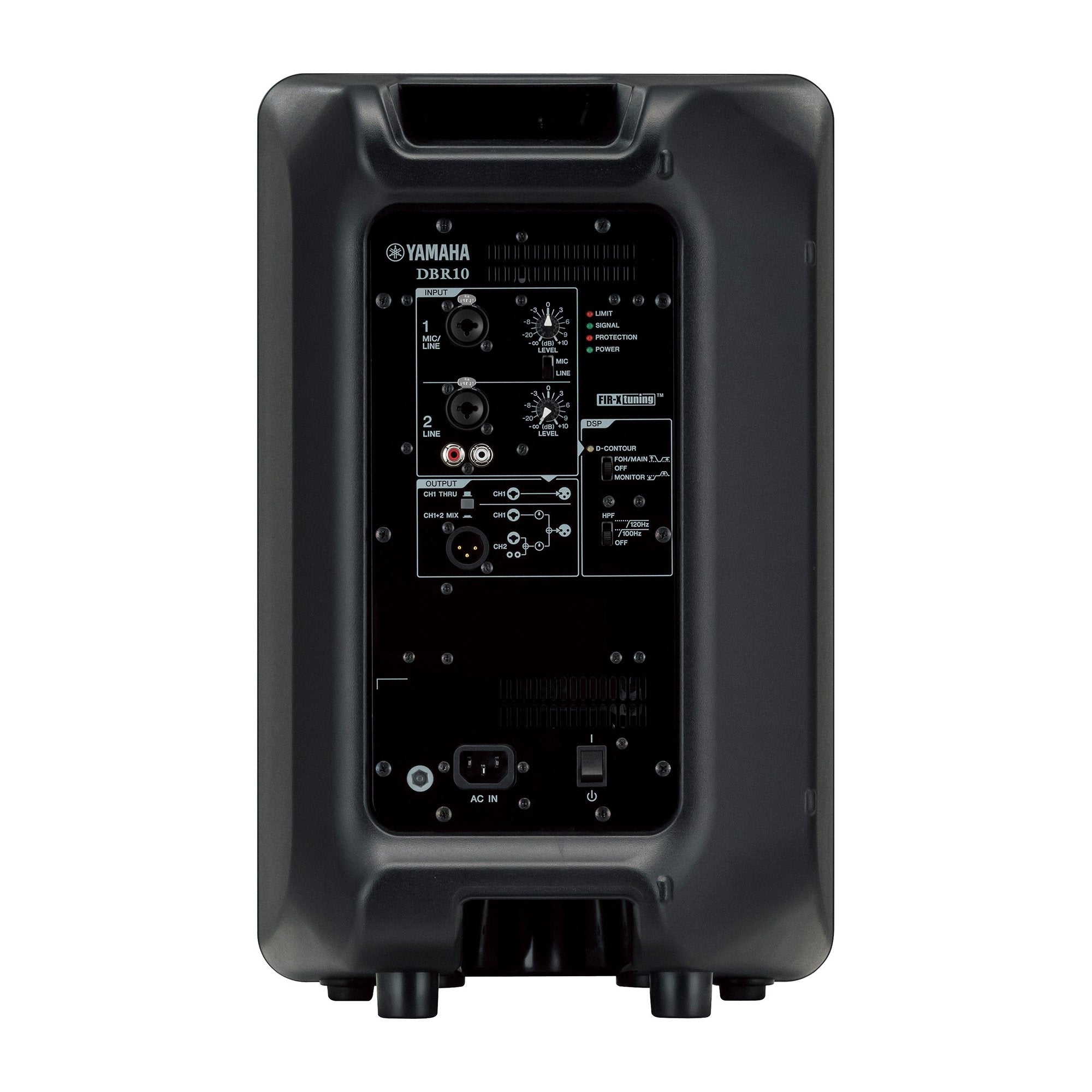

I/O connectors |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
Processors |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
Heat dissipation |
Fan cooling, 4 speeds |
Fan cooling, 4 speeds |
Fan cooling, 4 speeds |
Power requirements |
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
Power consumption |
74W(1/8 Power Consumption), 18W(Idle) |
74W(1/8 Power Consumption), 18W(Idle) |
60W(1/8 Power Consumption), 18W(Idle) |
Cabinet material |
Plastic |
Plastic |
Plastic |
Finish |
Black |
Black |
Black |
Handle |
Side x 2 |
Side x 2 |
Top x 1 |
Flying and mounting hardware |
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
Bottom x 2 (Fit for M8 x 15 mm eyebolts) |
Pole socket |
35mm (Bottom x 1) |
35mm (Bottom x 1) |
35mm (Bottom x 1) |
Dimensions |
W |
455mm (17.9") |
376mm (14.8") |
308mm (12.1") |
H |
700mm (27.6") |
601mm (23.7") |
493mm (19.4") |
D |
378mm (14.9") |
348mm (13.7") |
289mm (11.4") |
Net weight |
19.3 kg (42.6 lbs) |
15.8 kg (34.8 lbs) |
10.5 kg (23.2 lbs) |
Accessories |
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
